ROOTLINE¶
Provenance-graph attack reconstruction. ROOTLINE turns host telemetry (Sysmon, auditd/AUOMS, ATLAS audit logs, or its own bpftrace probe) into an append-only, hash-chained provenance graph and reconstructs the attack story from one alert or IOC: root cause, causal spine and blast radius, with every step explainable as graph edges.
Contribution
ROOTLINE is a training-free, explainable provenance reconstructor whose session-root stops raise event precision on held-out ATLAS host logs by +0.10 [0.07, 0.14] (higher on 12 of 12 logs) at essentially unchanged recall, with the full sensor-to-story path exercised on a live kernel in CI.
It does not match ATLAS's supervised model, and its rule tagger does not generalise (4 of 64 sealed captures detected); both are measured on the Evaluation page.

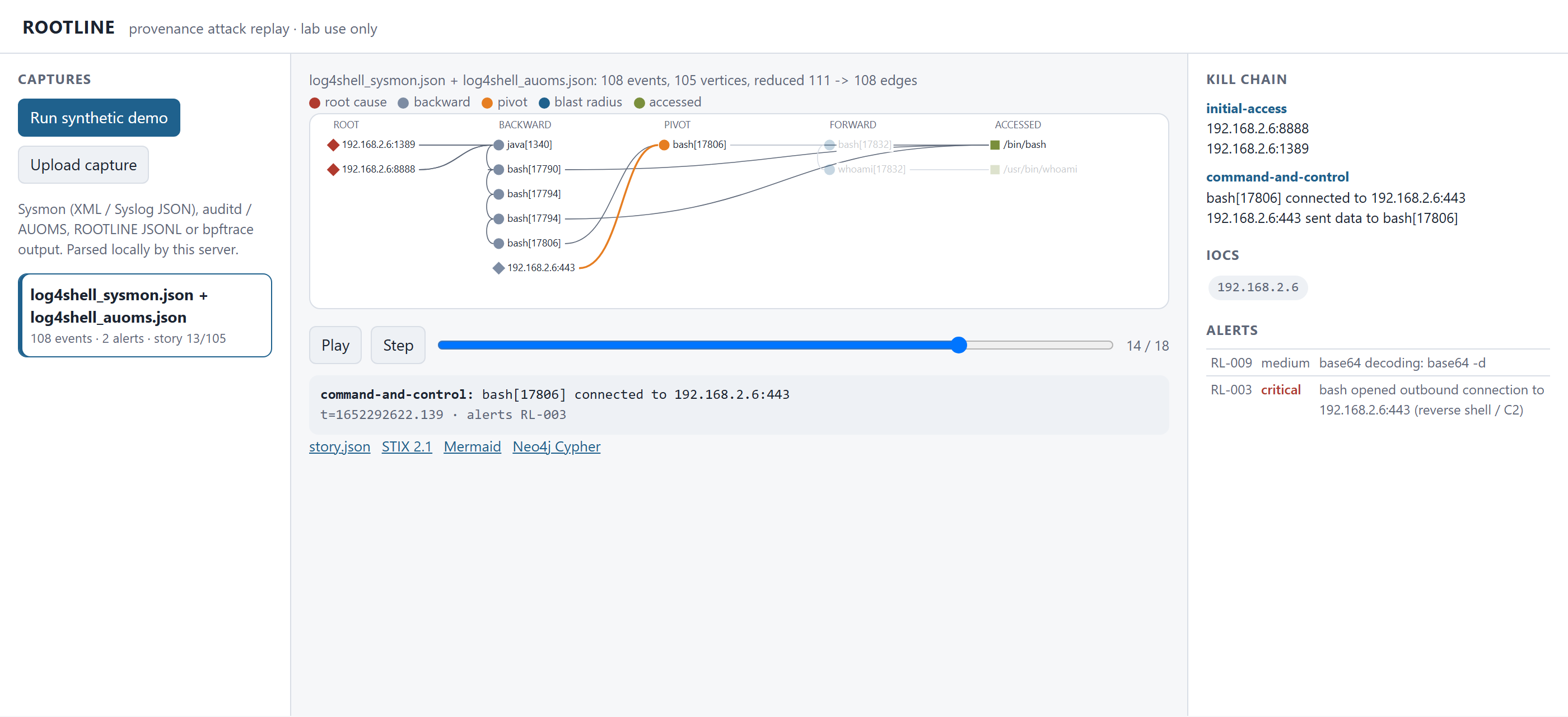

Open the replay UI Try it in 60 seconds Evaluation
Try it in 60 seconds¶
docker run --rm -p 127.0.0.1:8000:8000 ghcr.io/rakshit-737/rootline-provenance-forensics:latest # then open http://127.0.0.1:8000
or pip install -e . in a clone and
rootline analyze tests/fixtures/log4shell_sysmon.json tests/fixtures/log4shell_auoms.json
(expected output on Getting started).
Headline results¶
Rendered from the committed JSON by scripts/render_tables.py; each row names its source file in results/ and the run that wrote it. Intervals are 95 % (log-cluster bootstrap for the held-out logs, Wilson for counts). "Held out" means unseen host logs from the same ATLAS testbed.
| Result | Number | Source (results/) |
|---|---|---|
| ATLAS S1-S4 (design data): full method vs naive reachability, event F1 | 0.66 vs 0.25, higher on 4 of 4 logs (per-log 0.42-0.78 vs 0.15-0.39; ΔF1 +0.41, t(3) 95 % CI [+0.24, +0.58]) | ablation.json, bench run 37092501921 |
| ATLAS M1-M6 host logs (held out): precision / recall / F1, full vs naive | 0.62 / 0.72 / 0.46 vs 0.26 / 0.98 / 0.33; F1 higher on 9 of 12 logs, ΔF1 +0.14 [-0.11, +0.35] (sign-flip p = 0.28, not significant) | ablation.json, bench run 37092501921 |
| Session-root stops alone, held out | precision +0.10 [+0.07, +0.14], higher on 12 of 12 logs (exact sign test p = 0.00049); recall -0.0045 [-0.0119, -0.0003] | ablation.json, bench run 37092501921 |
| Same, only the 4 held-out logs whose exploit is not in S1-S4 (M2, M4) | precision +0.12, higher on 4 of 4 logs (descriptive) | ablation.json, bench run 37092501921 |
| ATLAS paper's graph-traversal baseline vs ROOTLINE naive reachability, event precision | 0.18 vs 0.15 / 0.26: consistent | paper Table 5; ablation.json, bench run 37092501921 |
| ATLAS LSTM, our reproduction (entity F1, S1-S4, mean of 5 seeds) | 0.24-0.75 vs ATLAS's cleaned list under our scorer 0.86-1.00 (paper 0.89-1.00): not reproduced | atlas_repro.json, atlas-repro run 36997669262 |
| Rule tagger v0.3: in-sample dev2 vs sealed, captures detected | 23/27 [0.68, 0.94] vs 4/64 [0.02, 0.15] | coverage.json, sealed-coverage run 36994398382 |
| Live bpftrace probe on a GitHub-hosted kernel | 71/72 CI jobs pass over 15 pushes [0.925, 0.998]; chain recovered in one query in 72/72 [0.95, 1.00] | live_ebpf.json, ci runs 36996901332..37003827535 |
| Graph reduction (16 ATLAS logs) | 3.8-5.8x fewer edges, lossless by design | atlas.json, bench run 37092501921 |
Pages¶
- How it works: one live capture from kernel events to the story.
- Evaluation: methodology, all results with CIs, the published comparison.
- Reproduce: exact commands, runtimes and where each number was computed.
- Rule-evaluation protocol, Limitations, ADRs.
Lab use only
ROOTLINE analyses captured telemetry. It contains no exploit or malware code; the datasets are event logs downloaded outside the repository, and the live CI chain uses dummy files and traffic that never leaves the runner.
